Effective blister pack design plays a critical role in the reliability, efficiency and long-term performance of pharmaceutical packaging operations.
Toolrite’s blister pack design capability is built around decades of practical experience supporting pharmaceutical blister packaging environments across a wide range of machinery platforms, production requirements and packaging materials. Working closely alongside tooling manufacture and feeding system development allows blister layouts to be engineered not only for visual presentation, but for stable production performance, reliable product handling and efficient long-term manufacture.

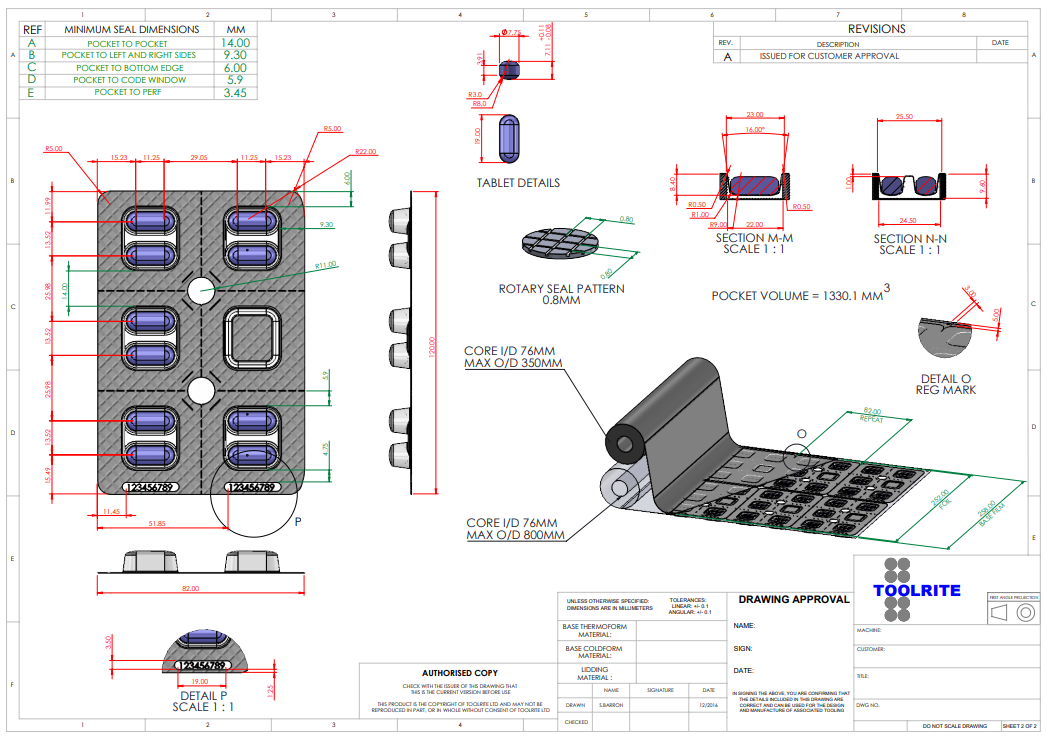

Every blister format is developed around the individual characteristics of the product, packaging material and machine platform being utilised. Detailed consideration is given to feeding method, product orientation, cavity geometry, material behaviour, draft angles, seal area design, coding window position and downstream packaging requirements throughout the complete blister pack development process.
Particular attention is placed on seal area optimisation and long-term seal integrity, as reliable sealing performance remains critical to pharmaceutical pack stability, product protection and repeatable high-speed production operation across both traditional and next-generation blister packaging materials.
Support can be provided across thermoform, cold form and plug assist blister packaging applications, including deeper draw blister formats commonly utilised for syringes, vials, auto-injectors and specialist pharmaceutical products where material control and forming behaviour are critical to maintaining pack stability and production reliability.
With increasing demand for sustainable and mono-material blister packaging solutions, understanding material behaviour throughout both the forming and sealing processes has become increasingly important. Consideration is therefore given to forming characteristics, stretch distribution, stress analysis within cold form applications, seal area optimisation, sealing land design and long-term seal integrity throughout the blister pack development process.
Particular attention is given to maintaining consistent and reliable seal areas, as seal integrity remains critical to pharmaceutical pack stability, product protection and long-term production performance across both traditional and next-generation blister packaging materials.
Alongside cavity design and forming behaviour, attention is also given to practical operational requirements, including print registration, coding window positioning, perforation layout, draft angles for thermoforming applications, sealing land configuration and downstream machine compatibility. This helps ensure blister formats are not only manufacturable but optimised for repeatable high-speed pharmaceutical packaging performance across a wide range of blister packaging machinery platforms.
Manufactured within the UK and supporting customers across the UK and Europe, Toolrite continues to provide technically driven blister pack design solutions developed around operational reliability, production efficiency and modern pharmaceutical packaging requirements.
Engineering a healthier tomorrow.
Thermoform Blister Pack Design
Thermoform blister pack layouts developed with careful consideration given to draft angles, material stretch characteristics, cavity stability and reliable long-term production performance across pharmaceutical packaging operations. Support can be provided across PVC, PVDC, PET and next-generation thermoforming materials where forming consistency, seal integrity, and downstream production reliability are critical.
Cold Form Blister Pack Design

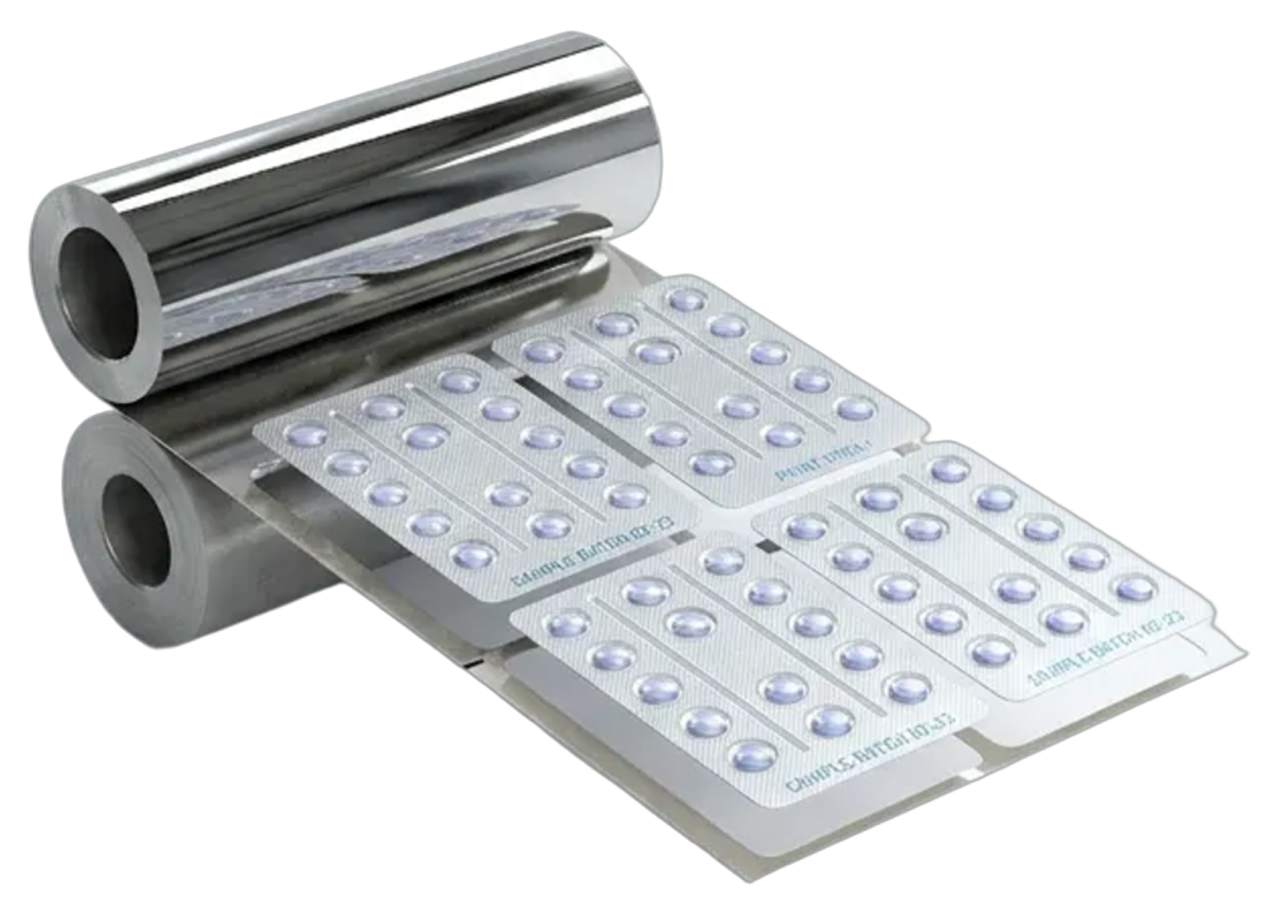

Cold form blister pack layouts engineered to support controlled material deformation, cavity consistency and reliable long-term blister packaging performance. Careful consideration is given to stress analysis, material behaviour, seal area design, pack rigidity and forming optimisation to support stable production performance across aluminium cold form blister applications.
Plug Assist & Deep Draw Blister Pack Design
Plug assist and deep draw blister pack formats developed for complex pharmaceutical packaging applications, including syringes, vials, auto-injectors and specialist medical products. Design consideration is given to material control, forming depth, cavity stability, product protection and reliable downstream packaging performance throughout the blister packaging process.
Sustainable & Mono-Material Blister Design
With increasing industry focus on recyclable and mono-material blister packaging solutions, blister layouts are developed with detailed consideration given to forming behaviour, seal integrity and material limitations associated with next-generation packaging materials. Support can be provided for blister layouts requiring modified seal areas, alternative crimp profiles, reduced material stress and optimised pack stability across sustainable blister packaging applications
Placebo Packs & CR Testing Support
Support can also be provided for placebo blister packs developed for validation and child resistance (CR) testing applications within pharmaceutical packaging environments. Placebo packs can be manufactured to replicate existing production blister formats where controlled drugs, antibiotics or allergen-sensitive products may prevent CR testing or validation activities from being completed safely on live production lines. Packs are developed to maintain representative pack geometry, cavity design and packaging characteristics whilst allowing testing to be completed within a controlled and contamination-safe environment.
3D Printed Prototypes
3D printed blister pack prototypes developed to support faster product evaluation, pack assessment and early-stage blister format validation prior to full tooling manufacture. Prototype packs can be produced to assist with product fitment review, feeding assessment, visual approval and early-stage packaging development, helping identify potential design or production considerations before entering full pharmaceutical blister tooling manufacture.
Frequently Asked Questions
What blister packaging materials can Toolrite support?
Support can be provided across a wide range of thermoform and cold form blister packaging materials, including PVC, PVDC, PET, aluminium cold form laminates and next-generation mono-material blister packaging solutions.
Can blister pack layouts be developed for sustainable packaging materials?
Yes. Blister pack layouts can be developed around recyclable and mono-material packaging requirements, with consideration given to forming behaviour, seal integrity, material stress and long-term production performance throughout the blister packaging process.
What is considered during the blister pack design process?
Blister pack design involves careful consideration of product shape, feeding method, material behaviour, cavity geometry, seal area design, draft angles, coding window position, print registration and overall machine compatibility to support reliable pharmaceutical packaging performance.
Why is seal area design important within blister pack development?
Seal area design plays a critical role in maintaining pack integrity, product protection and reliable long-term pharmaceutical packaging performance. Consideration is given to sealing land geometry, material behaviour, print registration and machine capability to help achieve stable and repeatable sealing performance across both thermoform and cold form blister applications.
Can Toolrite support deep draw and plug assist blister formats?
Yes. Support can be provided for plug assist and deep draw blister packaging applications commonly used for syringes, vials, auto-injectors and specialist pharmaceutical products where forming depth and material control are critical.
Why are draft angles important within thermoform blister packaging?
Draft angles help support controlled material forming, cavity release and stable blister production performance throughout thermoform packaging operations, particularly within deeper cavity applications.
What is stress analysis within cold form blister design?
Stress analysis helps evaluate how aluminium cold form material behaves throughout the forming process to support cavity consistency, pack rigidity, seal integrity and reliable long-term blister packaging performance.
Can blister pack layouts be developed around existing machinery limitations?
Yes. Blister pack layouts can be developed around the operational limitations and format capabilities of existing blister packaging machinery to help maintain reliable production performance and efficient format integration.
Do you support customers outside of the UK?
Toolrite supports pharmaceutical and packaging operations across the UK and Europe through the manufacture of precision blister tooling, feeding systems and engineered packaging solutions.
